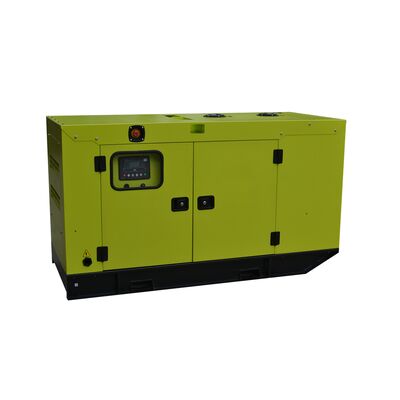

High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling

1SET
MOQ
1669-1761USD
قیمت
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
سرعت: 1500 دور در دقیقه
فرکانس: 50/60 هرتز
قدرت امتیازی: 5 کیلووات تا 2000 کیلووات
نوع خروجی: AC سه فاز
تایپ کنید: باز یا بی صدا (فوق العاده بی صدا)
رنگ: در نیاز شما، سفارشی
اطلاعات اولیه
محل منبع: چین
نام تجاری: QUANCHAI
شماره مدل: YN27BZJ30
پرداخت
جزئیات بسته بندی: تخته سه لا
زمان تحویل: 40 روز کاری
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 50 ست در ماه
توضیحات محصول
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling
High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General information Prime power Standby power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model YN27BZJ30
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
(According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Dimension and Weight
Model BYN33
Open type		 BYN33S
Silent type
Length (L) mm 1550 2100
Width (W) mm 610 850
Height (H) mm 1220 1070
Tank capacity (L) 55 55
Engine Specifications
Engine model & manufacturer YN27BZJ30(YUNNEI)
Engine model YN27BZJ30
Engine Rated Speed (rpm) 1500
Generator set Frequency(Hz) 50
Engine Prime Power (PRP)(kW) 30
Length (L) mm 920
Width (W) mm 550
Height (H) mm 850
Engine Dry Weight w/o Cooling System (kg) 240
Aspiration Type Turbocharged
Injection Type Direct
Configuration Vertical
No. of Cylinders 4
Displacement(liters) 2.67
Bore(mm) 90
Stroke(mm) 105
Compression Ratio 17.5
Piston Speed (m/s) 5.25
Rotation Direction (from flywheel) Anti-clockwise
Number of Flywheel Teeth 120/130
Flywheel House Size SAE4/SAE3
Alternator Specifications
Alternator
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kw/30kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 0
Front View
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 1
Side View
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 2
Control Panel
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 3
Engine Detail
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 4
Alternator View
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 5
Silent Type Exterior
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 6
Internal Components
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 7
Cooling System
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 8
Fuel System
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 9
Electrical Connections
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 10
Full Assembly
High Quality Open/Silent Type Yunnei Diesel Generator 24KW/30KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
