Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set

Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
سایبان: سفارشی
گارانتی: 12 ماه / 1000 ساعت
تایپ کنید: بی‌صدا (فوق‌صدا) یا باز، بی‌صدا، و غیره، خطی/۶ سیلندر/۴ زمانه/۴ سوپاپ/۱۹ لیتر، سایبان ضد صدا (بی‌صدا
کنترل پنل: نمایشگر دیجیتال LCD، Deepsea، ComAp، Deepsea / ComAp / Harsen / Smartgen 6110، Smartgen
نوع خروجی: AC تک فاز / سه فاز
کنترل کننده: Deepsea/Smartgen/و غیره
برنامه: بانک ایندورستی و غیره
ولتاژ نامی: 400/230 ولت، 110-480 ولت، 220 ولت / 380 ولت، 110 ولت / 240 ولت، 380 ولت
دینام: ماراتن، استمفورد، SLG/Stamford/Marathon/Meccatle/Leroy-somer، Stamford Or Newtec، Engga
نام محصول: دیزل ژنراتور، ژنراتور 313 کیلو وات، قدرت گرفته توسط دیزل ژنراتور ISUZU، دیزل ژنراتور در حالت آماده ب
رنگ: نیاز مشتریان
فرکانس: 50/60 هرتز
قدرت امتیازی: 313 کیلو ولت آمپر
موتور: دوسان اورجینال
روش خنک کننده: سیستم خنک کننده آب
برجسته کردن:

250kW silent diesel generator,water-cooled Doosan generator set,313KVA portable diesel generator

,

water-cooled Doosan generator set

,

313KVA portable diesel generator
اطلاعات اولیه
محل منبع: چین
نام تجاری: Doosan
گواهی: CE
شماره مدل: P126TI-II
پرداخت
جزئیات بسته بندی: بسته بندی حباب
زمان تحویل: 30 روز
قابلیت ارائه: 3000 مجموعه در ماه
توضیحات محصول
Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set
Product Overview

Our 250kW 313KVA BOBIG Doosan diesel generator (Model: P126TI-II) is designed to provide reliable power for a wide range of applications. Backed by the renowned Doosan brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance

Rated Power: 250kW (313KVA) with stable prime power output for continuous operation under heavy loads. Standard frequency of 50Hz suitable for most electrical equipment.

Engine Excellence

Powered by P126TI-II Doosan engine with high torque, fuel efficiency, and low emissions. Runs at 1500 RPM for smooth, consistent power supply.

Environmental Adaptability

Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m. Custom solutions available for different conditions.

Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 313 344
Power Rating (kW) 250 275
Frequency (Hz) 50
Engine Model P126TI-II
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BDO344 (Open Type) BDO344S (Silent Type)
Length (mm) 3100 3900
Width (mm) 1050 1400
Height (mm) 2100 1950
Tank Capacity (L) 575 575
Engine Specifications
Engine Model & Manufacturer P126TI-II (DOOSAN)
Engine Type Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke 123 × 155mm
Displacement 11 liters
Cylinders and Arrangement Cast iron, 6 cylinder, In-line Type
Battery Charging Alternator 28.5V × 45A alternator
Starting Voltage 24V
Fuel System Mechanical Injection Pump
Fuel Filter Full flow, cartridge type with water drain valve
Lube Oil Filter Type Full flow, cartridge type
Lube Oil Capacity Max. 23 liters, Min. 20 liters
Flywheel Dimensions Clutch No. 14 M
Dry Weight 950kg (engine only)
Dimension (L×W×H) 1389 × 1389 × 1216 mm
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314DS
Alternator Rated Power 250kW/313kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Certifications & Standards

Our generator complies with multiple international and national standards, including ISO 8528-5:2018, GB/T2820.5-2009, and CE. These certifications guarantee the quality, safety, and reliability of the product.

Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set 0 Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set 1
Applications
  • Industrial Use: Backup power source for factories, ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services

We support customization and OEM services with design drawings.

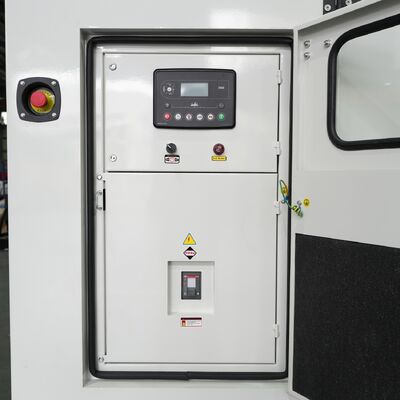

All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

Portable, Household, Wholesale, Customizable 250kW 313KVA Water-cooled Type Doosan Super Silent Diesel Generator Set 2
Warranty & Support

BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we provide cost-based spare parts maintenance.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ is 1 set. Payment methods include 30% T/T deposit with 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery time is 10-15 working days after receiving deposit.
Which port do you use for export?
Fuzhou port, Fujian province or as customer request.
Do you provide spare parts for maintenance?
We provide regular engine filters (air, water, fuel, oil) for self-maintenance and can supply parts anytime, typically shipped within 3-5 days.
Can you customize voltage, frequency, tank capacity, phase and color?
Yes, all specifications can be customized according to your needs.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
Why Choose Us
  • Brand Reputation: Doosan is a well-known and trusted brand with a long history of producing high-quality products
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Tailored solutions based on your specific requirements
