Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS

1
MOQ
USD 3500-5500
قیمت
Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته کردن:

75kva silent diesel generator,60kw super silent generator,LR4A3L-D engine generator with ATS

,

60kw super silent generator

,

LR4A3L-D engine generator with ATS
اطلاعات اولیه
محل منبع: چین
نام تجاری: YTO
شماره مدل: YTO YT4B2Z-D
پرداخت
جزئیات بسته بندی: 65*104*140 سانتی متر
زمان تحویل: 30 روز کاری
شرایط پرداخت: L/C، T/T، D/P
قابلیت ارائه: 500 عدد در ماه
توضیحات محصول
Electric Generator 75kva 60KW Super Silent Diesel Generator Powered by LR4A3L-D Engine with ATS
Our YTO LR4A3L-D Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 60kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

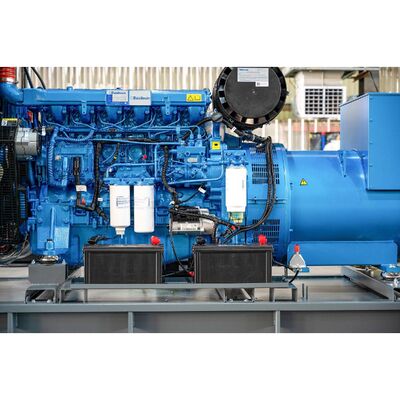

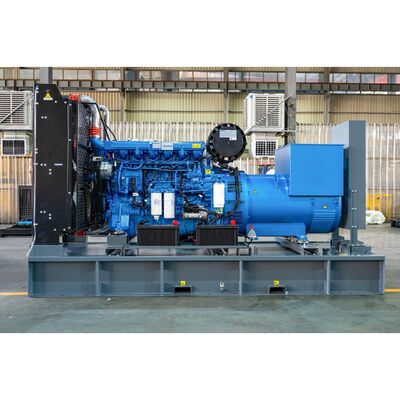

Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 0 Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 1
Power Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 75 83
Power Rating (kW) 60 66
Frequency (Hz) 50
Engine Model LR4A3L-D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BYT83 (Open Type) BYT83S (Silent Type)
Length (L) mm 2200 2650
Width (W) mm 800 1040
Height (H) mm 1500 1400
Tank Capacity (L) 138 138
Engine Specifications
Engine Model & Manufacturer LR4A3L-D (YTO)
Number of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Method of Air Aspiration Turbocharged with Aftercooler
Cooling Medium Liquid
Bore 105 mm
Stroke 125 mm
Compression Ratio 17.0:1
Cubic Capacity 4.58 L
Dry Engine Weight 500 kg
Dimension (L×W×H) 986×1146×713 mm
Direction of Rotation Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-3-4-2 (1 cylinder furthest from flywheel)
Standby Power 83 kVA
Adaptive Power Station (kW) 75
Steady State Speed Stability at Constant Load 5%
Specific Fuel Consumption ≤ 202g/kW·h
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224F
Alternator Rated Power 60kW/75kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements

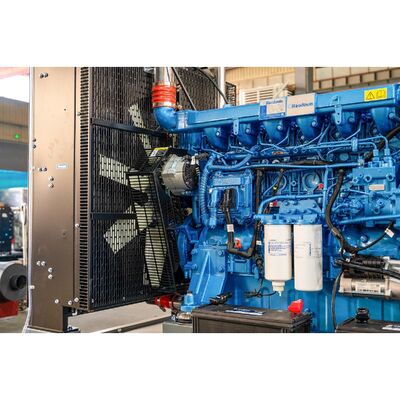

Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)

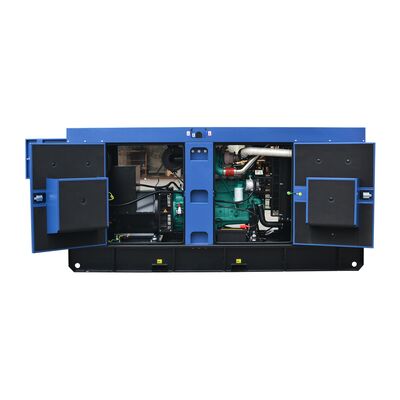

Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 3 Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 4 Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 5 Electric Generator 75kva 60KW Super Silent diesel Generator Powered by LR4A3L-D Engine with ATS 6
