Name: Factory Price Open/Silent Type Doosan Diesel Generator 160KW/200KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: P086TI
Price: 9,216.00 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

سرعت: 1500 دور در دقیقه

فرکانس: 50/60 هرتز

قدرت امتیازی: 5 کیلووات تا 2000 کیلووات

نوع خروجی: AC سه فاز

تایپ کنید: باز یا بی صدا (فوق العاده بی صدا)

رنگ: در نیاز شما، سفارشی

برجسته کردن:

Doosan silent diesel generator 160KW,water cooling diesel generator 200KVA,open type diesel generator with warranty

water cooling diesel generator 200KVA

open type diesel generator with warranty

اطلاعات اولیه

محل منبع: چین

نام تجاری: DOOSAN

شماره مدل: P086TI

پرداخت

جزئیات بسته بندی: تخته سه لا

زمان تحویل: 40 روز کاری

شرایط پرداخت: L/C، T/T

قابلیت ارائه: 50 ست در ماه

گالری

Factory Price Open/Silent Type Doosan Diesel Generator 160KW/200KVA Power Supply Water Cooling

توضیحات محصول

Factory Price Open/Silent Type Doosan Diesel Generator 160KW/200KVA Power Supply Water Cooling

Product Overview

High quality water cooling DOOSAN diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	200	220
Power Rating (kW)	160	176
Frequency (Hz)	50
Engine Model	P086TI
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BDO220 (Open Type)	BDO220S (Silent Type)
Length (L) mm	2350	3200
Width (W) mm	800	1200
Height (H) mm	1760	1660
Tank Capacity (L)	368	368

Specifications and illustrations are subject to revision without notice.

Engine Specifications

Engine Model & Manufacturer	P086TI (DOOSAN)
Engine Type	Diesel, water cooled, Turbo charged & intercooled
Bore x Stroke	111 × 139mm
Displacement	8.07 liters
Cylinders and Arrangement	Cast iron, 6 cylinder, In-line Type
Battery Charging Alternator	28.5V x 45A alternator
Starting Voltage	24V
Fuel System	Mechanical Injection Pump
Fuel Filter	Full flow, cartridge type with water drain valve
Lube Oil Filter Type(s)	Full flow, cartridge type
Lube Oil Capacity (l)	Max. 15.5 liters, Min. 12 liters
Flywheel Dimensions	Clutch No. 14 M
Dry Weight	790kg (engine only)
Dimension (LxWxH)	1242 × 923 × 1095 mm

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274H
Alternator Rated Power	160kw/200kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%

Product Images

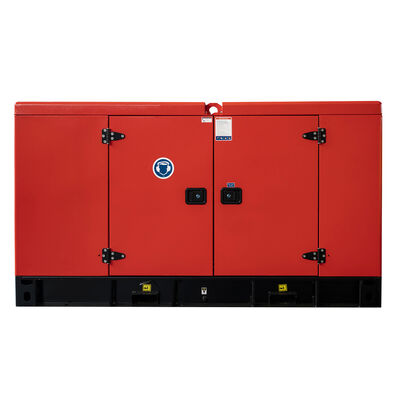

Front View

Side View

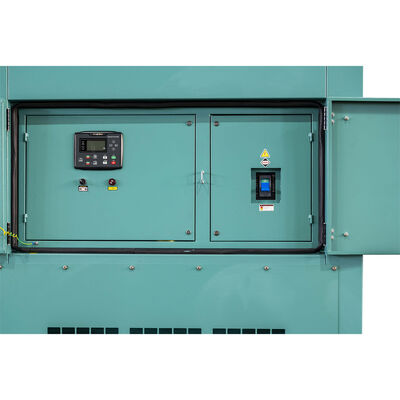

Control Panel

Engine Detail

Alternator View

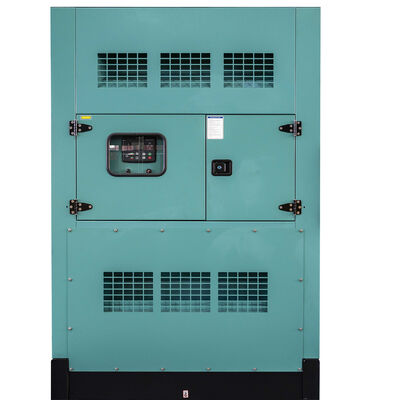

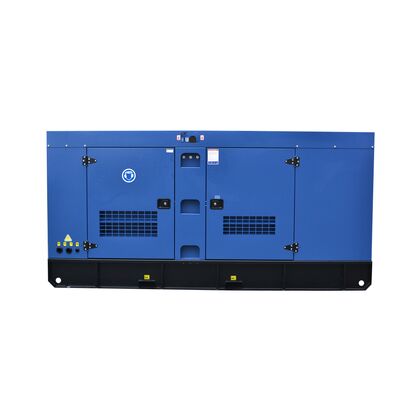

Silent Type Exterior

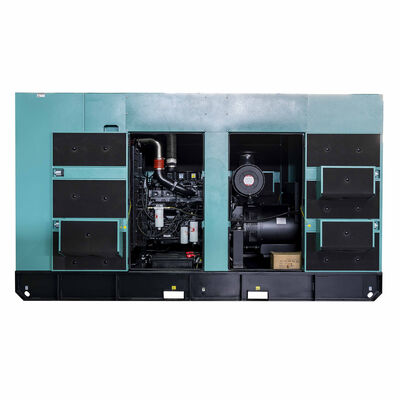

Internal Components

Cooling System

Fuel System

Electrical Connections

Full Assembly

Quality Inspection

Specifications and illustrations are subject to revision without notice.
