Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva

1
MOQ
5000USD-8000USD
قیمت
Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته کردن:

50kva silent diesel generator

,

100kw diesel generator with warranty

,

80kva silent genset
اطلاعات اولیه
نام تجاری: Baudouin
گواهی: ISO 9001
شماره مدل: 4M10G110/5
پرداخت
جزئیات بسته بندی: 315*104*161 سانتی متر
زمان تحویل: 30 روز کاری
قابلیت ارائه: 500 عدد در ماه
توضیحات محصول
Baudouin FAW Genset Diesel Generator
Our Baudouin 4M10G110/5 Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power applications. Engineered with the renowned Baudouin engine, this 80kW unit features a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability.
Perfect for construction, industrial, commercial, and emergency backup power needs.

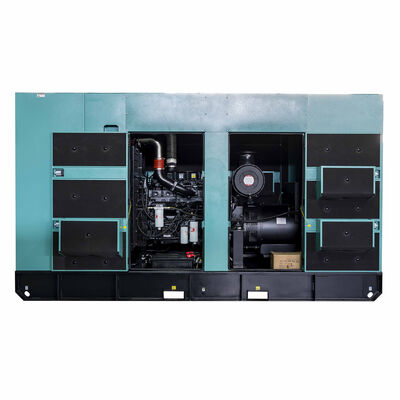

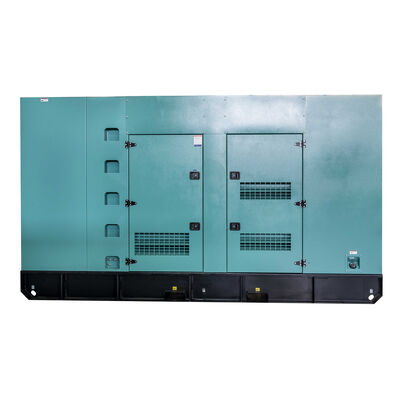

Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 0 Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 100 110
Power Rating (kW) 80 88
Frequency (Hz) 50
Engine Model 4M10G110/5
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12 hours of operation.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
Model BBDA110 (Open Type) BBDA110S (Silent Type)
Length (L) mm 1900 3150
Width (W) mm 750 1040
Height (H) mm 1380 1610
Tank Capacity (L) 184 184
Engine Specifications
Engine Model & Manufacturer 4M10G110/5 (BAUDOUIN)
Number of Cylinders / Valves 4/8
Cylinders Arrangement In line
Bore x Stroke (mm) 105 × 118
Displacement (L) 4.087
Thermodynamic Cycle Diesel 4 stroke
Firing Order 1-3-4-2
Mean Piston Speed (m/s) 5.9
BMEP @ ESP (Bar) 20.80
Cooling System Liquid (water + 50% antifreeze)
Injection System Direct
Fuel System Mechanical Pump
Aspiration Turbocharged and Aftercooled
Compression Ratio 17.5 : 1
Flywheel Housing SAE 3
Flywheel 11.5"
Rotation Viewed from Flywheel Counter Clockwise
Allowed Static Bending Moment 7000
Number of Teeth on Flywheel Ring Gear 128
Inertia of Flywheel (kg•m²) 0.391
Inertia of Crankshaft (kg•m²) 0.111
Emission Standard N/A
Overall Dimensions with Radiator (mm) 1330×741×995
Engine Dry Weight without Radiator (kg) 400
Engine Dry Weight with Radiator (kg) 495
Engine Wet Weight with Radiator (kg) 530
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224G
Alternator Rated Power 80kW/100kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto Start and Auto Mains Failure Control Module
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements

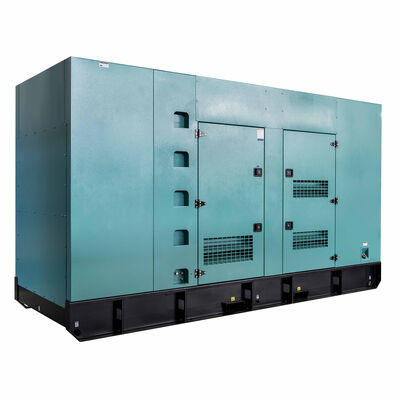

Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 2
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Options Alternator Options Fuel System Options Generating Set Options
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Product Gallery

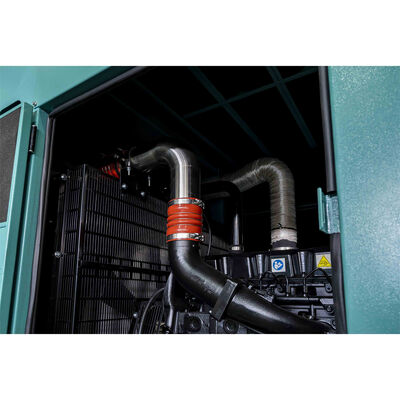

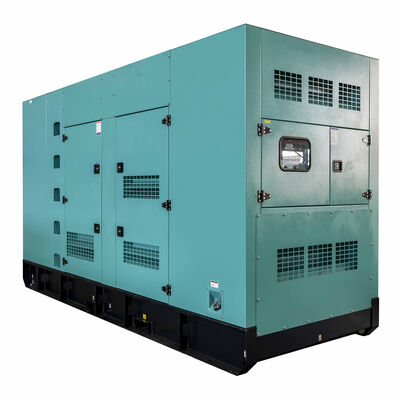

Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 3 Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 4 Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 5 Baudouin FAW Genset 50 Kva 50kw 60kw 80kw 100kw Silent Diesel Generator 50kva 60kva 80kva 100kva 6
