POWER Intelligent diesel Generator 200kW Open Type Silent diesel Electric Power Make Generator 250KVA FACTORY PRICE

POWER Intelligent diesel Generator 200kW Open Type Silent diesel Electric Power Make Generator 250KVA FACTORY PRICE
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
سایبان: سفارشی شده
گارانتی: 12 ماه / 1000 ساعت
تایپ کنید: بی‌صدا (فوق‌صدا) یا باز، بی‌صدا، و غیره، خطی/۶ سیلندر/۴ زمانه/۴ سوپاپ/۱۹ لیتر، سایبان ضد صدا (بی‌صدا
کنترل پنل: نمایشگر دیجیتال LCD، Deepsea، ComAp، Deepsea / ComAp / Harsen / Smartgen 6110، Smartgen
نوع خروجی: AC تک فاز / سه فاز
کنترل کننده: Deepsea/Smartgen/و غیره
برنامه: بانک ایندورستی و غیره
ولتاژ نامی: 400/230 ولت، 110-480 ولت، 220 ولت / 380 ولت، 110 ولت / 240 ولت، 380 ولت
دینام: ماراتن، استمفورد، SLG/Stamford/Marathon/Meccatle/Leroy-somer، Stamford Or Newtec، Engga
نام محصول: دیزل ژنراتور، ژنراتور 200 کیلو وات، نیرو گرفته توسط دیزل ژنراتور فاوده، دیزل ژنراتور در حالت آماده ب
رنگ: نیاز مشتریان
فرکانس: 50/60 هرتز
قدرت امتیازی: 200 کیلووات
موتور: فاوده اصلی
روش خنک کننده: سیستم خنک کننده آب
برجسته کردن:

200kW silent diesel generator,250KVA open type power generator,FAWDE diesel generator with warranty

,

250KVA open type power generator

,

FAWDE diesel generator with warranty

اطلاعات اولیه
محل منبع: چین
نام تجاری: FAWDE
گواهی: CE
شماره مدل: CA6DL2 - 30D
پرداخت
جزئیات بسته بندی: تخته سه لا
زمان تحویل: 30 روز
قابلیت ارائه: 500 عدد در ماه
توضیحات محصول

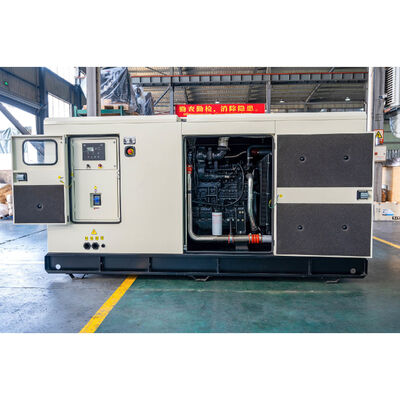

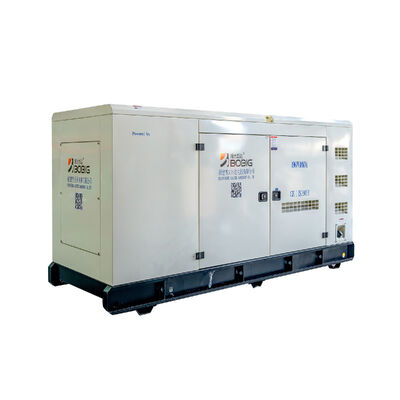

200kW 250KVA BOBIG FAWDE Diesel Generator (Model: CA6DL2-30D)
Product Overview

Our 200kW 250KVA BOBIG FAWDE diesel generator (Model: CA6DL2-30D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 200kW (250KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
  • Engine Model: CA6DL2-30D FAWDE engine with advanced technology
  • Engine Speed: 1500 RPM for smooth and consistent power supply
  • Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model CA6DL2-30D
Engine Speed (RPM) 1500
Phase 3
PF 0.8

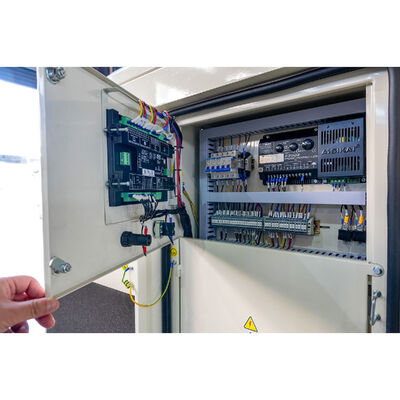

Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Parameter Specification
Engine Model & Manufacturer CA6DL2-30D (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 112 mm
Stroke 145 mm
Compression Ratio 17.5:1
Displacement 8.57 L
Dry Engine Weight 830 kg
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 200kW/250kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Altitude ≤1000m
Insulation Class H class
Dimensions and Weight
Model Type Open Type (BFA275) Silent Type (BFA275S)
Length (mm) 2600 3700
Width (mm) 1100 1220
Height (mm) 1850 1950
Tank Capacity (L) 460 460
Environmental Adaptability
  • Ambient Temperature: Operates effectively from +5°C to +40°C
  • Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Compliance Standards

Our generator complies with multiple international and national standards, including:

  • ISO 8528-5:2018
  • GB/T2820.5-2009
  • CE Certification
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues.

Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.

Packaging & Shipping

Plywood case packaging with delivery within 10-15 working days after receiving customer deposit.

Frequently Asked Questions

Q: What is your MOQ, payment method, and delivery time?

A: MOQ is 1 set. Payment: 30% T/T deposit, 70% balance before delivery. Delivery: 10-15 working days after deposit.

Q: Which port do you use for export?

A: Fuzhou port, Fujian province or as customer request.

Q: Can you provide spare parts for maintenance?

A: Yes, we provide regular engine filters (air, water, fuel, oil) for self-maintenance.
