Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw

1
MOQ
Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
رتبه بندی قدرت: 560 کیلووات
قدرت امتیازی: 700kva
سیستم کنترل: دیجیتال
ظرفیت تانک: 1288 لیتر
فاز: 3
فرکانس: 50/60 هرتز
تایپ کنید: بی صدا/باز
برجسته کردن:

Baudouin silent diesel generator,Baudouin diesel generator 100kw,Baudouin diesel generator 500kw

,

Baudouin diesel generator 100kw

,

Baudouin diesel generator 500kw

اطلاعات اولیه
محل منبع: چین
نام تجاری: BAUDOUIN
گواهی: CE
شماره مدل: 6M33G750/5
پرداخت
جزئیات بسته بندی: 380cm*174cm*274.5cm
زمان تحویل: 5-8 روز کاری
شرایط پرداخت: L/C، T/T
توضیحات محصول
Baudouin Diesel Generator - Power Range: 20kW to 1000kW

Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw

Product Overview

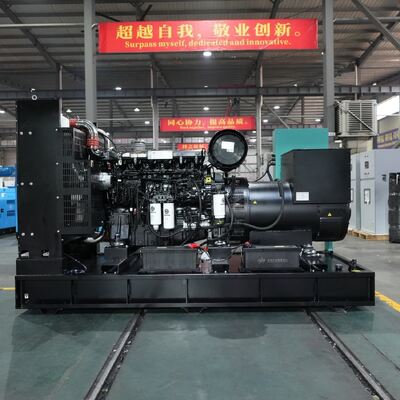

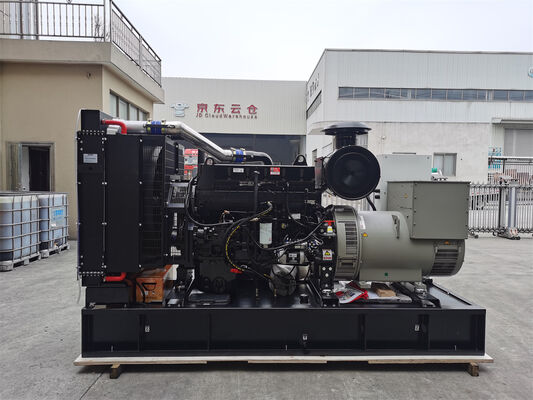

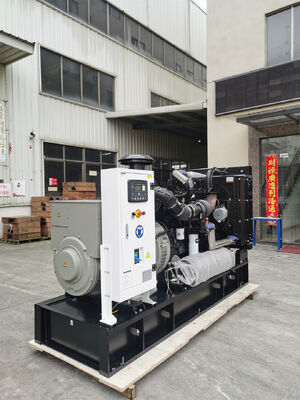

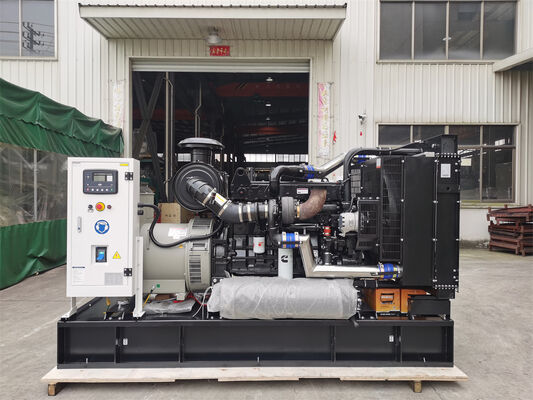

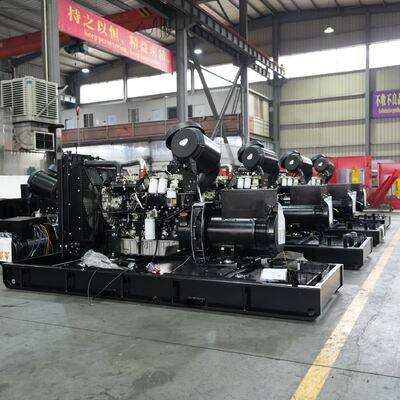

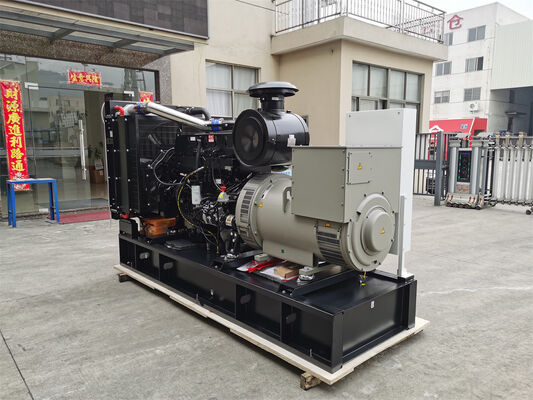

Baudouin 560KW 700kva Digital Panel Super Silent Diesel Genset - Model 6M33G750/5. A dependable power generator for industrial and commercial environments. We offer various power configurations that can be customized according to your needs.

Please feel free to contact us!

Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw 0Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw 1
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)700770
Power Rating (kW)560616
Frequency (Hz)50
Engine Model6M33G750/5
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230
Fuel Tank Capacity Operating Time≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw 2
Dimensions and Weight
ModelBBDA770BBDA770S
TypeOpenSilent
Length (L) mm38005600
Width (W) mm17402200
Height (H) mm27452550
Tank Capacity (L)12881288
Engine Specifications
Engine Model & Manufacturer6M33G750/5 (BAUDOUIN)
Number of Cylinders / Valves6/24
Cylinders ArrangementIn line
Bore x Stroke (mm)150 x 185
Displacement (L)19.6
Thermodynamic CycleDiesel 4 stroke
Mean Piston Speed (m/s)9.25
BMEP @ ESP (Bar)27.35
Cooling SystemLiquid (water + 50% antifreeze)
Injection SystemDirect
Fuel SystemMechanical Pump
AspirationTurbocharged and Aftercooled
Compression Ratio15:1
Flywheel HousingSAE 1
Flywheel14"
Number of Teeth on Flywheel Ring Gear178
Inertia of Flywheel (kg•m²)4.76
Inertia of Crankshaft (kg•m²)2.22
Emission StandardN/A
Overall Dimensions with Radiator (L x W x H) mm2798 x 1680 x 1954
Engine Dry Weight without Radiator (kg)2090
Engine Dry Weight with Radiator (kg)2452
Engine Wet Weight with Radiator (kg)2669
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-354F
Alternator Rated Power560kw/700kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Company Profile

Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. is an electrical machinery manufacturer specializing in technological research, production and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, including 20 technicians.
Our main products include air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets and water-cooled diesel generator sets. Our small air-cooled brushless generators and welding & generating sets have earned a great reputation in the market for their reliable quality.
We adhere to the principle of "Quality, Creation, Service and Development", continuously updating technology, improving quality and providing better service. Our advanced testing equipment includes CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.
We maintain strict quality control and have obtained ISO9000 Quality System Certification. We welcome you to build sincere cooperation with us.

Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw 3Baudouin Diesel Generator Perkings Wechai Yuchai Deutz Sdec Super Silent Open 20kw 30kw 50kw 100kw 200kw 400kw 500kw 800kw 1000kw 4
After Sales Services

As a leading Chinese diesel generator manufacturer, we offer comprehensive export services to meet global market needs:

  • Customized manufacturing
  • Quality control
  • International logistics
  • Documentation and certification
  • Trade support
  • After-sales service
  • Customer training
  • Market support
  • Technical collaboration

We deliver tailored diesel generator solutions that meet international quality standards. Our experienced team handles all logistics to ensure timely delivery. We provide necessary documentation compliant with international trade requirements and offer after-sales support including technical assistance and spare parts supply.

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer with our own factory located in Fujian, China. We welcome you to visit our facility and production line to see our quality control processes firsthand.
What is the minimum order quantity (MOQ)?
Our standard MOQ is 1 set. We are flexible and can discuss volume orders for larger projects to provide better pricing.
What is the delivery time after order confirmation?
Production time varies by quantity and inventory status. Typically 20-30 days for standard models. We'll provide a precise timeline upon order confirmation.
What payment terms do you offer?
We commonly accept T/T with 50% deposit and 50% balance before shipment. For established relationships, we can discuss other terms like L/C.
Do you perform factory inspection before shipment?
Absolutely. Every unit undergoes thorough testing in our factory before shipment.
