Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator

1
MOQ
USD 300-860
قیمت
Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
برجسته کردن:

SDEC diesel generator 220kW,hotel standby power generator 275kVA,SDEC 6DTAA8.9-G34 diesel generator

,

hotel standby power generator 275kVA

,

SDEC 6DTAA8.9-G34 diesel generator
اطلاعات اولیه
محل منبع: چین
نام تجاری: SDEC
شماره مدل: 6DTAA8.9-G34
پرداخت
جزئیات بسته بندی: 355*122*195 سانتی متر
زمان تحویل: 30 روز کاری
شرایط پرداخت: L/C، T/T، D/P
قابلیت ارائه: 500 قطعه در ماه
توضیحات محصول
Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator
SDEC Diesel Generator Set

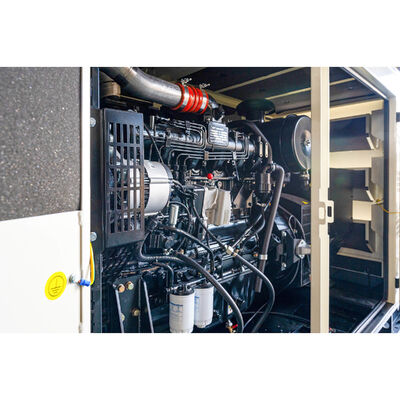

Our SDEC 6DTAA8.9-G34 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 220kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator 0
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 275 303
Power Rating (kW) 220 242
Frequency (Hz) 50
Engine Model 6DTAA8.9-G34
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BSD303 (Open Type) BSD303S (Silent Type)
Length (L) mm 2600 3550
Width (W) mm 1000 1200
Height (H) mm 1850 1950
Tank Capacity (L) 506 506
Engine Specifications
Engine Model & Manufacturer 6DTAA8.9-G34 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 114 × 144 mm
Displacement 8.82 lit.
Compression Ratio 16.5 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle Electronic control
Dry Weight 900 kg
Dimension 1493×805×1323mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 2#
Fly Wheel SAE 11.5# (number of teeth: 125)
Injection Pump Denso electronic fuel pump of Japan
Governor Denso electronic fuel pump of Japan
Feed Pump Denso electronic fuel pump of Japan
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314CS
Alternator Rated Power 220kW/275kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator 1
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator 2 Hotel Standby Power SDEC 6DTAA8.9-G34 220kW 275kVA Generator 3
